What just happened

I have a repo to collect ProtonVPN data for my own convenience and some extra network checks.
This “API” is undocumented (it was never meant to be an API), but users have been using it to get endpoint and load data for each server.
It used to be available without authentication, but now it needs a cookie.

The endpoint worked just fine for a while.
Then the behavior changed recently, affecting account profile generation and the Chrome extension.
In my notes, the responses started changing in October.

When I was checking through the IP list to update my router’s configuration a few days ago,

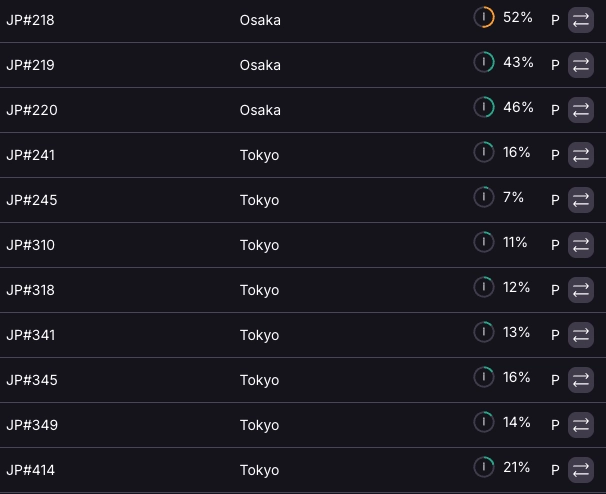

I found that most of the entries were missing from my result set. The same thing was happening on the account page and in the Chrome extension. web-proton-vpn-missing

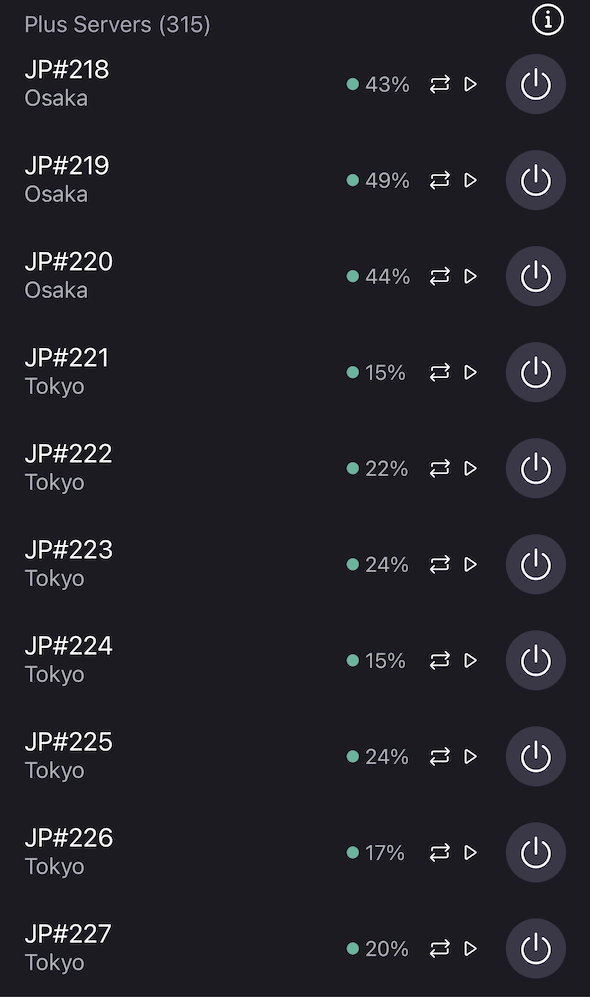

But the app was fine.
app-proton-vpn-is-good

What I suspected

My gut feelings about the cause of the differences were:

  • Different API endpoint / different param call
  • Predefined list in the app
  • User-Agent dedicated for the app
  • Different header value

What I checked

The entry point was the same everywhere: GitHub.com for ProtonVPN

  1. Different API endpoint / different param call

🤔 It is indeed the same ,
with no additional parameters added.

  1. User-Agent dedicated for the app.

🤔 It is at least
not a special value .

  1. Predefined list in the app

🤔 Couldn’t find any in the source code either.

  1. Final resort, different header value

As the endpoint is a GET request, the only variables are the query params and the HTTP headers.
I found only one header that looked
somewhat related : x-pm-appversion.
I tried using the header x-pm-appversion: [email protected] in the client.

And it worked flawlessly getting the full list!

Another finding about the Proton VPN WireGuard profile

ProtonVPN uses a single entry point to map multiple exit IPs.

e.g. node-hk-05.protonvpn.net: a single peer IP can have HK#28 ~ HK#39 as exit IPs

In the data endpoint, they use label (the WireGuard config marks it as Bouncing) to indicate the actual exit IP being used.

What I discovered is that when you generate a WireGuard config on the page, the label (or Bouncing) is fixed.
If you change the peer IP and public key to another server in the configuration, there is no issue, and the exit IP becomes the corresponding label number of that peer IP.

For example:

You have generated a HK#30 profile on the account page in ProtonVPN.
It is under Label=2 in node-hk-05.protonvpn.net

When you change the Peer to node-jp-53.protonvpn.net (Ranges from JP#334 ~ JP#363)
The actual exit node you are using will be Label=2 in node-jp-53.protonvpn.net, which is JP#336.

Whoops, you suddenly go from Hong Kong to Japan without generating another WireGuard configuration.
That’s weird.

This kind of investigation and scratch research is always fun.
Luckily this one was fairly straightforward.
